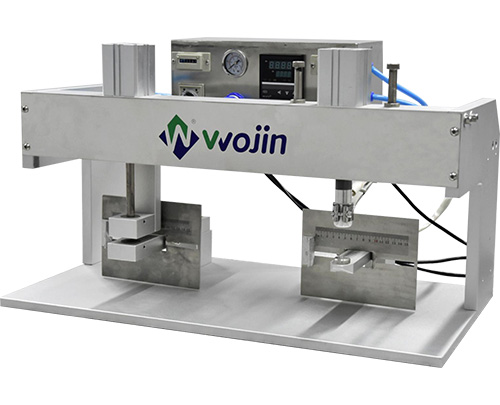

VM-05 is a device to cut out a large circluar and then hot sealing with the degassing valve on the pouch.
500 to 700 PCS/Hour
Installing Speed
220-250V ~ 50Hz
Power Requirement
170mm (Measured from top of the pouch)
Max Distance Valve
45mm wide with 50mm side gusset
Minimum Bag Size
380mm(W) x 700mm(D) x 500mm(H)
Overall Dimension
0.6mpa/6L
Min Air Compressor (Required by customer)
silver
Color
34.5kg
Gross Weight
Aluminium Alloy
Material
One-year guarantee
Guarantee
Perforted Tips
Features
◉This equipment is made of aluminum alloy to prevent rust.
◉High strength working structure, satisfy customers who have special requirements for bag thickness and demand a perfect appearance after sealing the degassing valve on the bag.
◉It is equipped with stable digital temperature control, time relay controls and foot pedal.
Application Range
◉Applicable up to 15C composite soft packing bags, such as pure aluminum composite packing bags, aluminized composite packing bags, paper-plastic composite packing bags, PE multi-layer co-extrusion film
Packing
◉MEAS - 725 x 400 x 520 mm
◉Packing - Wooden box
Get a Free Quote
Semi-automatic Valve Applicator
