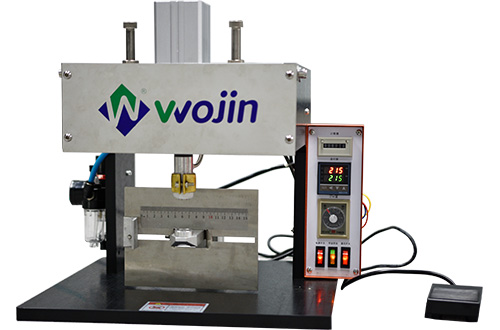

This model's main body is made of high-performance engineering plastic POM and meets the requirements of food-grade packaging equipment.
500 to 700 PCS/Hour
Installing Speed
220V ~ 50Hz
Power Requirement
170mm (Measured from top of pouch)
Max Distance Valve
38mm wide with 50mm side gusset
Minimum Bag Size
500mm(W) x 470mm(D) x 560mm(H)
Overall Dimension
0.8mpa/8L
Min Air Compressor (Required by customer)
aluminum
Material
silver
Color
22kg
Gross Weight
One-year guarantee
Guarantee
Perforted Tips
Features
◉It continues to use the stable digital temperature control adjustment, time relay and foot pedal control
◉Some working structural parts are precisely processed with high-quality 6061 aluminum and have their surfaces treated
◉Maximum pressure depth up to 17cm
◉The upper part of the equipment is equipped with a four-spring balancing mechanism, which can make the contact between the bag and the gas valve tighter during hot-pressing
Application Range
◉It is suitable for composite flexible packaging bags with a thickness of 12 deniers to 25 deniers.
Packing
◉MEAS - 500 x 470 x 560 mm
◉Packing - Wooden box
